Schema#

After SUMO produces XML output, AgentSUMO’s xml_to_sqlite_tool parses it into a relational SQLite database (simulations.db) — the structured representation of simulation results. This page documents that schema so custom SQL workflows can sit alongside the agent’s natural-language access.

The schema is defined in agentsumo_mcp/analysis/xml_to_sqlite.py (_create_schema). All six tables are keyed by a simulation_id so multiple runs coexist in the same file and can be compared through ordinary SQL JOIN.

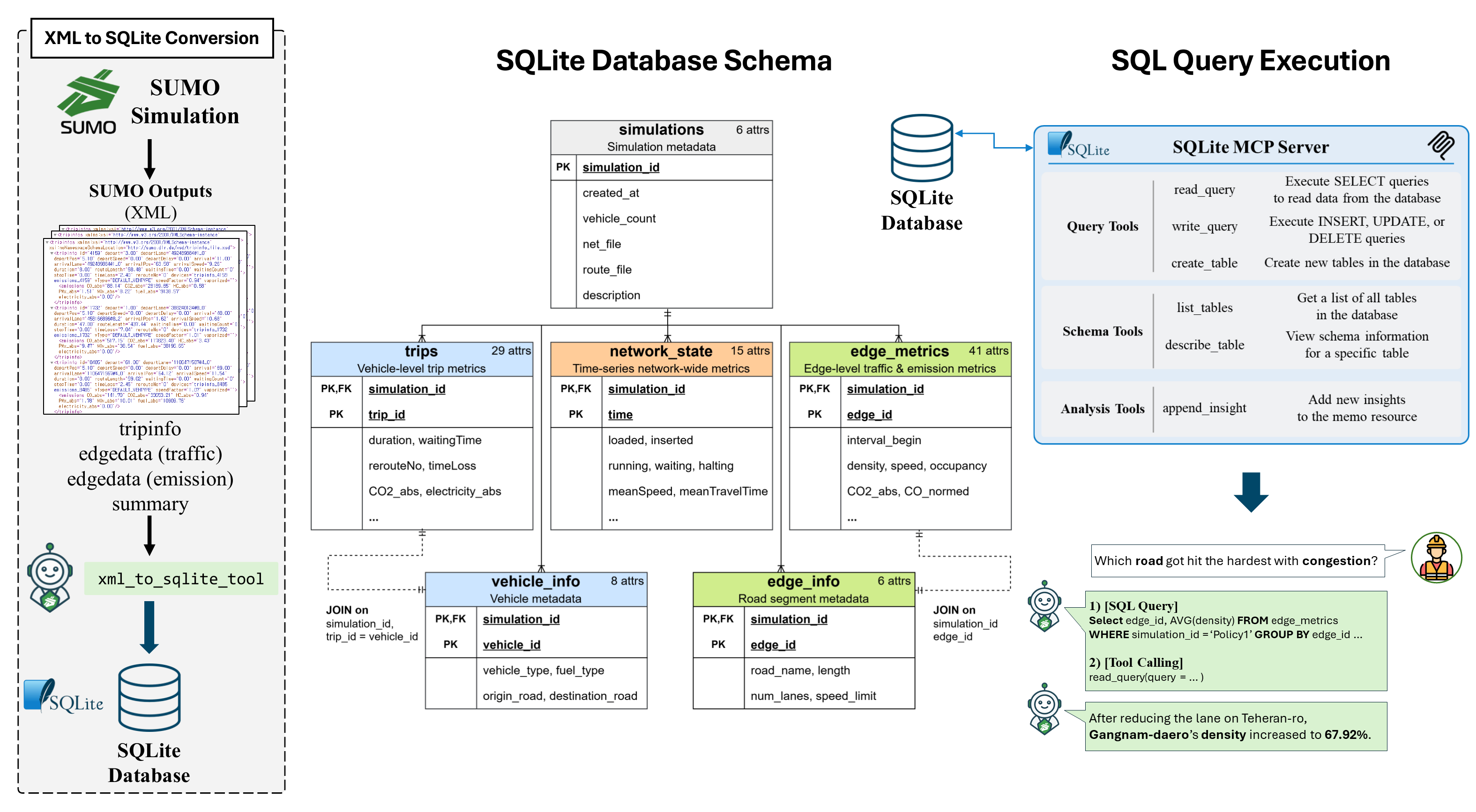

SQLite integration pipeline and 6-table schema — SQLite integration pipeline of AgentSUMO. The `xml_to_sqlite_tool` converts SUMO XML outputs into a structured database of six linked tables keyed by `simulation_id`. The SQLite MCP Server then exposes query, schema inspection, and analysis tools, enabling the Planner Agent to answer natural-language questions about simulation results through SQL.#

Entity-relationship diagram#

        erDiagram
    simulations  ||--o{ trips         : "simulation_id"
    simulations  ||--o{ vehicle_info  : "simulation_id"
    simulations  ||--o{ edge_info     : "simulation_id"
    simulations  ||--o{ edge_metrics  : "simulation_id"
    simulations  ||--o{ network_state : "simulation_id"
    vehicle_info }o--|| trips         : "vehicle_id = trip_id"
    edge_info    ||--o{ edge_metrics  : "edge_id"

    simulations {
        TEXT    simulation_id PK
        TEXT    created_at
        INTEGER vehicle_count
        TEXT    net_file
        TEXT    route_file
        TEXT    description
    }
    trips {
        TEXT simulation_id PK
        TEXT trip_id       PK
        REAL duration
        REAL waitingTime
        REAL timeLoss
        REAL CO2_abs
        REAL fuel_abs
    }
    vehicle_info {
        TEXT simulation_id PK
        TEXT vehicle_id    PK
        TEXT vehicle_type
        TEXT fuel_type
        TEXT origin_road
        TEXT destination_road
    }
    edge_info {
        TEXT    simulation_id PK
        TEXT    edge_id       PK
        TEXT    road_name
        REAL    length
        INTEGER num_lanes
        REAL    speed_limit
    }
    edge_metrics {
        TEXT simulation_id  PK
        TEXT edge_id        PK
        REAL interval_begin PK
        REAL density
        REAL speed
        REAL waitingTime
        REAL CO2_abs
    }
    network_state {
        TEXT    simulation_id PK
        REAL    time          PK
        INTEGER running
        INTEGER halting
        REAL    meanSpeed
        REAL    meanTravelTime
        REAL    meanWaitingTime
    }

Tables at a glance#

Table	Granularity	Source	Rows per simulation
`simulations`	Run	`xml_to_sqlite` metadata	1
`trips`	Vehicle trip	`tripinfo.xml`	~ vehicle count
`vehicle_info`	Vehicle	`tripinfo.xml` + vType lookup	~ vehicle count
`edge_info`	Road segment	SUMO `net_file` via `sumolib`	~ edge count
`edge_metrics`	Edge × time interval	`edgeData.xml` + `edgeData_emission.xml`	~ edges × intervals
`network_state`	Simulation time step	`summary.xml`	~ duration / step

Tables#

`simulations`#

Run-level metadata. One row per xml_to_sqlite_tool invocation.

Column	Type	Description
`simulation_id`	TEXT (PK)	Caller-provided unique identifier (e.g., `"baseline"`, `"teheran_lane_reduction"`).
`created_at`	TEXT	ISO-8601 timestamp at ingest.
`vehicle_count`	INTEGER	Total trips ingested from `tripinfo.xml`.
`net_file`	TEXT	Path to the SUMO network used for this run.
`route_file`	TEXT	Path to the route file used for this run.
`description`	TEXT	Free-text label provided by the caller.

Primary key: simulation_id.

`trips`#

One row per vehicle trip, populated from tripinfo.xml. Captures both trip dynamics and per-vehicle emission totals (HBEFA-based).

Column	Type	Description
`simulation_id`	TEXT	FK → `simulations.simulation_id`.
`trip_id`	TEXT	SUMO vehicle ID.
`depart`	REAL	Departure time in seconds.
`departLane`	TEXT	Lane the vehicle departed from.
`departPos`	REAL	Lateral departure position.
`departSpeed`	REAL	Departure speed (m/s).
`departDelay`	REAL	Delay vs. scheduled departure (s).
`arrival`	REAL	Arrival time in seconds.
`arrivalLane`	TEXT	Lane on arrival.
`arrivalPos`	REAL	Lateral arrival position.
`arrivalSpeed`	REAL	Arrival speed (m/s).
`duration`	REAL	Total trip duration (s).
`routeLength`	REAL	Distance traveled (m).
`waitingTime`	REAL	Cumulative time spent waiting (s).
`waitingCount`	INTEGER	Number of waiting events.
`stopTime`	REAL	Cumulative time at scheduled stops (s).
`timeLoss`	REAL	Time lost vs. unimpeded travel (s).
`rerouteNo`	INTEGER	Number of reroutes during the trip.
`devices`	TEXT	Comma-separated SUMO device list.
`vType`	TEXT	Vehicle type ID.
`speedFactor`	REAL	Speed factor applied to this vehicle.
`vaporized`	TEXT	Set if the vehicle vaporized (failed to insert / removed).
`CO_abs`	REAL	Total CO emissions (mg).
`CO2_abs`	REAL	Total CO₂ emissions (mg).
`HC_abs`	REAL	Total hydrocarbons (mg).
`PMx_abs`	REAL	Total particulate matter (mg).
`NOx_abs`	REAL	Total NOₓ (mg).
`fuel_abs`	REAL	Total fuel consumed (mL).
`electricity_abs`	REAL	Total electricity consumed (Wh).

Primary key: (simulation_id, trip_id).

`vehicle_info`#

Per-vehicle metadata derived from the route file and vType definitions. Lets queries group results by fuel type or filter by origin/destination road without re-parsing the route XML.

Column	Type	Description
`simulation_id`	TEXT	FK → `simulations.simulation_id`.
`vehicle_id`	TEXT	Joins to `trips.trip_id`.
`vehicle_type`	TEXT	vType ID (e.g., `"passenger"`, `"ev_passenger"`).
`fuel_type`	TEXT	Derived classification: `gasoline`, `diesel`, `electric`, `hybrid`, etc.
`origin_edge`	TEXT	First edge in the vehicle’s route.
`destination_edge`	TEXT	Last edge in the vehicle’s route.
`origin_road`	TEXT	Human-readable name of `origin_edge`.
`destination_road`	TEXT	Human-readable name of `destination_edge`.

Primary key: (simulation_id, vehicle_id).

`edge_info`#

Per-edge static attributes pulled from the SUMO network via sumolib. The table holds the structural information about each edge — the dynamic metrics live in edge_metrics.

Column	Type	Description
`simulation_id`	TEXT	FK → `simulations.simulation_id`.
`edge_id`	TEXT	SUMO edge ID.
`road_name`	TEXT	Human-readable name (e.g., `"Teheran-ro"`).
`length`	REAL	Edge length in meters.
`num_lanes`	INTEGER	Number of lanes on this edge.
`speed_limit`	REAL	Posted speed limit (m/s).

Primary key: (simulation_id, edge_id).

`edge_metrics`#

Per-edge per-interval traffic and emission metrics, populated from edgeData.xml (traffic) and edgeData_emission.xml (emissions). The emission columns come in three normalizations:

*_abs — total over the interval.
*_normed — length-and-time normalized.
*_perVeh — per-vehicle on the edge during the interval.

Column	Type	Description
`simulation_id`	TEXT	FK → `simulations.simulation_id`.
`edge_id`	TEXT	Joins to `edge_info.edge_id`.
`interval_begin`	REAL	Interval start (s).
`interval_end`	REAL	Interval end (s).
`sampledSeconds`	REAL	Total vehicle-seconds sampled.
`traveltime`	REAL	Average travel time on the edge.
`overlapTraveltime`	REAL	Travel time including overlap.
`density`	REAL	Vehicles per km.
`laneDensity`	REAL	Vehicles per km per lane.
`occupancy`	REAL	Fraction of the edge occupied.
`waitingTime`	REAL	Total waiting time on the edge.
`timeLoss`	REAL	Total time loss on the edge.
`speed`	REAL	Average speed (m/s).
`speedRelative`	REAL	`speed / speed_limit`.
`departed`	INTEGER	Vehicles that departed from this edge.
`arrived`	INTEGER	Vehicles that arrived at this edge.
`entered`	INTEGER	Vehicles that entered the edge.
`left`	INTEGER	Vehicles that left the edge.
`laneChangedFrom`	INTEGER	Lane-change exits.
`laneChangedTo`	INTEGER	Lane-change entries.
`CO_abs` … `electricity_abs`	REAL	Absolute emissions over the interval (7 species).
`CO_normed` … `electricity_normed`	REAL	Normalized emissions (7 species).
`CO_perVeh` … `electricity_perVeh`	REAL	Per-vehicle emissions (7 species).

Primary key: (simulation_id, edge_id, interval_begin).

`network_state`#

Network-wide per-step state extracted from summary.xml. Records cumulative vehicle counts (loaded, inserted, running, waiting, ended, arrived, halting) together with mean speed, travel time, and waiting time across all active vehicles at each simulation step. Supports temporal analyses such as congestion-onset detection and peak-halting comparison that vehicle-level aggregates cannot resolve.

Column	Type	Description
`simulation_id`	TEXT	FK → `simulations.simulation_id`.
`time`	REAL	Simulation time step (s).
`loaded`	INTEGER	Cumulative vehicles parsed from the route file.
`inserted`	INTEGER	Cumulative vehicles that entered the network.
`running`	INTEGER	Vehicles currently in the network at time t.
`waiting`	INTEGER	Vehicles waiting to be inserted at time t.
`ended`	INTEGER	Cumulative vehicles that left the network (arrived + vaporized).
`arrived`	INTEGER	Cumulative vehicles that reached their destination.
`halting`	INTEGER	Vehicles currently stopped (speed = 0).
`meanSpeed`	REAL	Mean speed of running vehicles (m/s).
`meanSpeedRelative`	REAL	Mean of `speed / speed_limit` ∈ [0, 1].
`meanTravelTime`	REAL	Mean travel time of running vehicles (s).
`meanWaitingTime`	REAL	Mean waiting time of running vehicles (s).
`teleports`	INTEGER	Cumulative SUMO teleport events.
`collisions`	INTEGER	Cumulative collision events.

Primary key: (simulation_id, time).

Indexes#

The schema creates indexes on the most common access patterns: (simulation_id, edge_id) on edge_metrics; road_name and length on edge_info; fuel_type, origin_road, destination_road on vehicle_info; and simulation_id on network_state. These keep cross-scenario joins responsive even with tens of millions of rows.

Example queries#

Canonical SQL snippets you can paste into any SQLite client (or ask the agent to run for you in natural language).

Top-N slowest edges in one run#

Top 10 slowest edges by average speed#

SELECT e.road_name, em.edge_id, AVG(em.speed) AS avg_speed
FROM edge_metrics em
JOIN edge_info e
  ON e.simulation_id = em.simulation_id
 AND e.edge_id = em.edge_id
WHERE em.simulation_id = 'baseline'
GROUP BY em.edge_id
ORDER BY avg_speed ASC
LIMIT 10;

Per-vehicle CO₂ emissions for a fleet sub-group#

CO₂ totals grouped by fuel type#

SELECT v.fuel_type, SUM(t.CO2_abs) AS total_co2_mg, COUNT(*) AS trips
FROM trips t
JOIN vehicle_info v
  ON v.simulation_id = t.simulation_id
 AND v.vehicle_id   = t.trip_id
WHERE t.simulation_id = 'ev_75pct'
GROUP BY v.fuel_type
ORDER BY total_co2_mg DESC;

Departure-delay distribution#

Bucket trips by departure delay#

SELECT
  CASE
    WHEN departDelay < 0   THEN 'early'
    WHEN departDelay = 0   THEN 'on time'
    WHEN departDelay < 60  THEN 'under 1 min'
    WHEN departDelay < 300 THEN '1–5 min'
    ELSE '5+ min'
  END AS bucket,
  COUNT(*) AS trips
FROM trips
WHERE simulation_id = 'baseline'
GROUP BY bucket
ORDER BY trips DESC;

Origin-destination pair counts#

Top 20 OD pairs#

SELECT origin_road, destination_road, COUNT(*) AS trips
FROM vehicle_info
WHERE simulation_id = 'baseline'
GROUP BY origin_road, destination_road
ORDER BY trips DESC
LIMIT 20;

Side-by-side comparison of two simulations#

Cross-scenario KPI comparison (baseline vs. policy)#

SELECT
  AVG(CASE WHEN simulation_id = 'baseline' THEN duration END) AS avg_dur_baseline_s,
  AVG(CASE WHEN simulation_id = 'teheran_lane_reduction' THEN duration END) AS avg_dur_policy_s,
  AVG(CASE WHEN simulation_id = 'baseline' THEN waitingTime END) AS avg_wait_baseline_s,
  AVG(CASE WHEN simulation_id = 'teheran_lane_reduction' THEN waitingTime END) AS avg_wait_policy_s,
  SUM(CASE WHEN simulation_id = 'baseline' THEN CO2_abs END) AS co2_baseline_mg,
  SUM(CASE WHEN simulation_id = 'teheran_lane_reduction' THEN CO2_abs END) AS co2_policy_mg
FROM trips
WHERE simulation_id IN ('baseline', 'teheran_lane_reduction');

Time loss aggregated by road name#

Top 15 roads by cumulative time loss#

SELECT e.road_name, SUM(em.timeLoss) AS total_loss_s
FROM edge_metrics em
JOIN edge_info e
  ON e.simulation_id = em.simulation_id
 AND e.edge_id = em.edge_id
WHERE em.simulation_id = 'baseline'
GROUP BY e.road_name
HAVING total_loss_s > 0
ORDER BY total_loss_s DESC
LIMIT 15;

Top emitters by fuel type#

NOₓ and PMₓ emissions by fuel type#

SELECT v.fuel_type,
       SUM(t.NOx_abs) AS nox_mg,
       SUM(t.PMx_abs) AS pmx_mg,
       COUNT(*)        AS trips
FROM trips t
JOIN vehicle_info v
  ON v.simulation_id = t.simulation_id
 AND v.vehicle_id   = t.trip_id
WHERE t.simulation_id = 'baseline'
GROUP BY v.fuel_type
ORDER BY nox_mg DESC;

Top 5% busiest edges (length-weighted)#

Edges in the 95th percentile of mean density#

WITH per_edge AS (
  SELECT em.edge_id,
         e.road_name,
         e.length,
         AVG(em.density) AS mean_density
  FROM edge_metrics em
  JOIN edge_info e
    ON e.simulation_id = em.simulation_id
   AND e.edge_id = em.edge_id
  WHERE em.simulation_id = 'baseline'
  GROUP BY em.edge_id
)
SELECT *
FROM per_edge
ORDER BY mean_density DESC
LIMIT (SELECT COUNT(*) / 20 FROM per_edge);
